Product Introduction

　　QSC Type Specific Gravity Stone Remover is mainly used to remove stones, clods, small mud, etc. from grain. It realizes the separation of stone and grain by adjusting the wind pressure and vibration frequency based on the difference of specific gravity and suspension speed between grain and stone. The machine is equipped with a multi blade high-speed fan with high accuracy. Under the action of wind pressure, the grain crops with light specific gravity are suspended on the upper layer, and slide down from the outlet of finished materials under their own gravity, while the stones with large specific gravity will cling to the mesh surface, and then the table top will be vibrated by adjusting the frequency conversion cry, and sent to the outlet, so as to achieve the purpose of separation.

　　Product Features

　　1. The frequency conversion regulator equipped with this machine can perform fine regulation, even the stones with small specific gravity difference can be separated;

　　2. The machine has mature technology and superior performance, and the stone removal rate is higher than 99%.

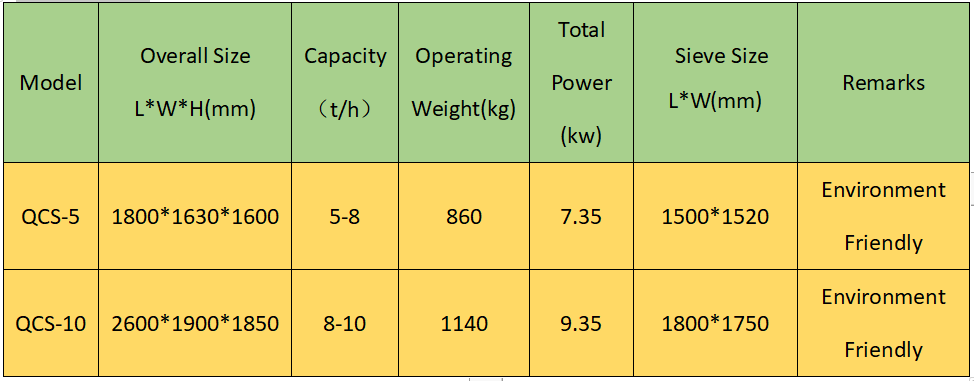

　　　　Main Parameter
