5XZC-10D Air-And-Screen Cleaner

Product Description:

Product Introduction5XZC-10D Air-And-Screen Cleaner is a basic cleaning equipment integrating air se

TEL:+8615081184639
Product Details

  Product Introduction

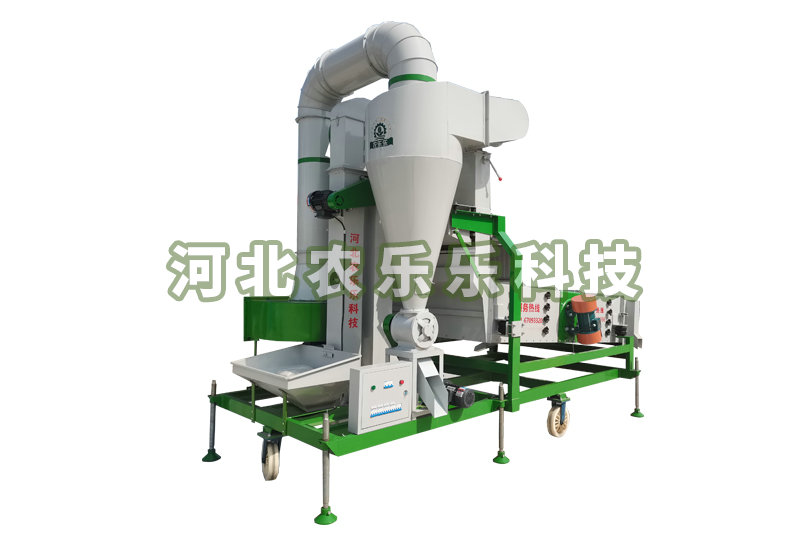

  5XZC-10D Air-And-Screen Cleaner is a basic cleaning equipment integrating air separation and screening. Its air separation function is mainly completed by vertical air screen. According to the aerodynamic characteristics of grain and the different critical speeds of grain and impurities, it realizes separation by adjusting the air flow speed. Light impurities are absorbed into the spiral dust remover for centralized discharge, and better materials enter the vibrating screen after passing through the air screen. The vibrating screen can be set as a two-layer, three-layer or four layer screen structure according to the demand, which can remove large impurities and small impurities at the same time. The selected materials can be divided into three varieties: large particles, medium particles and small particles, which are respectively excluded from different outlets. The sorting principle of vibrating screen is determined according to the geometric size characteristics of materials. Different types and varieties of grain have different sizes. The selection and replacement of screen pieces with different specifications can meet the sorting requirements. This machine is widely used in seed, agricultural and sideline products cleaning, fried food and other industries. It has a good cleaning effect on all kinds of grain seeds, cereals, beans, melon seeds, fried food, etc. It is the most commonly used cleaning equipment in the above industries.

  Product Features

  1. This machine is mainly composed of frame, elevator, bulk grain tank, air flotation, screening, electric control and walking device.

  2. The whole machine is compact in structure, simple in operation, flexible in movement, and tractable by motor vehicles.

  3. The whole machine is easy to clean, can effectively prevent mixing, and is conducive to ensuring the seed purity and the quality grade of other agricultural and sideline products and economic crops.

3

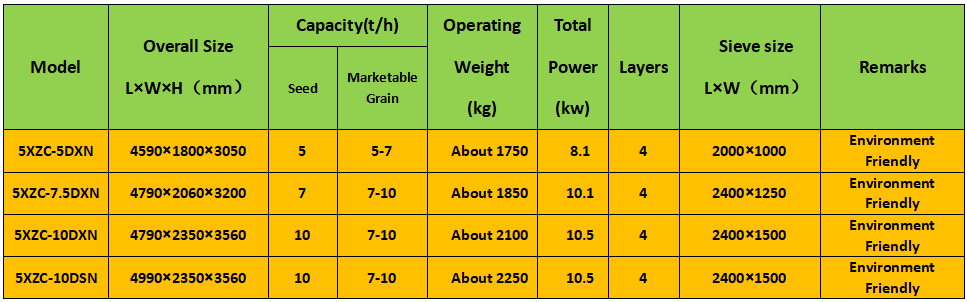

 Main Parameter
